CFAM800480B0-050TC

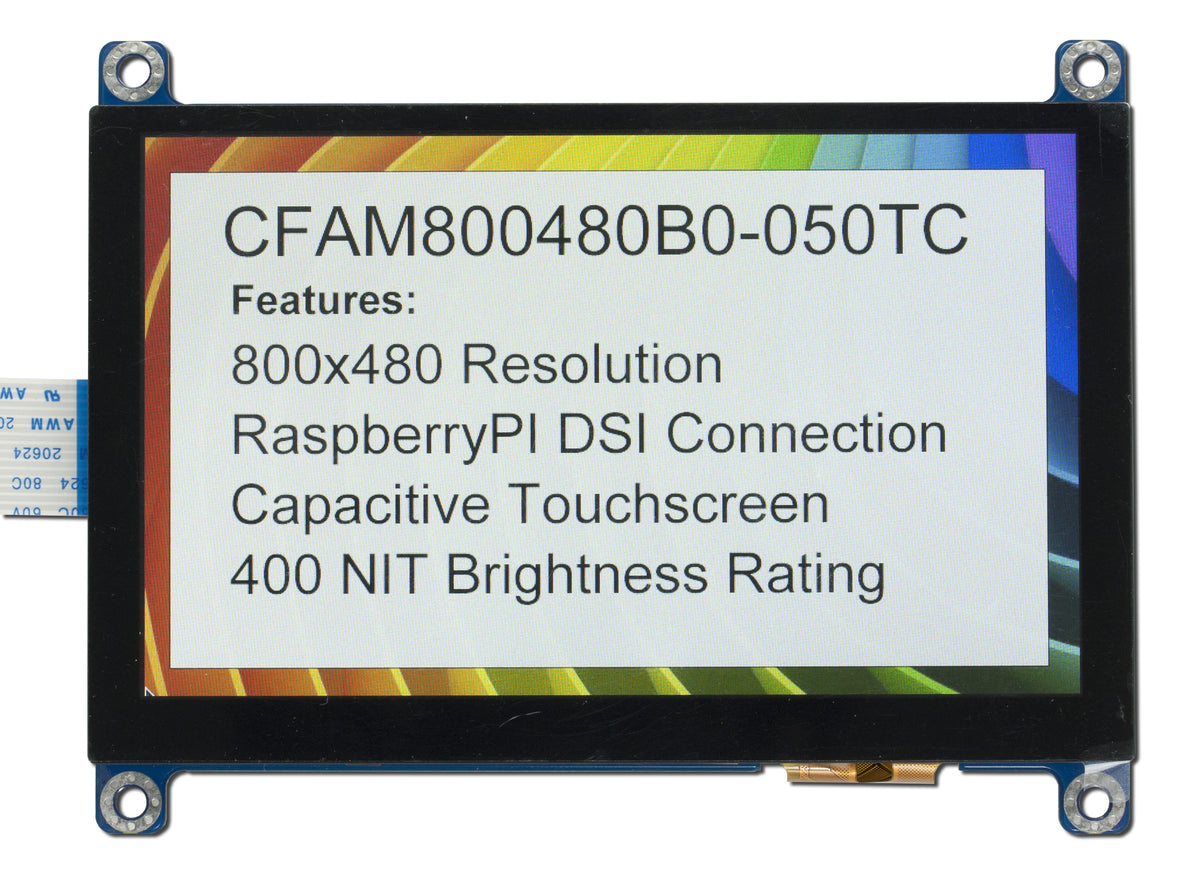

5" Raspberry Pi Compatible Touchscreen Display - CFAM800480B0-050TC
- Size"
- Resolution
- Interface
$1,111.00volume pricing on request
TFT Display Modules
10 results
No products match the current filters. Try removing some filters.
CFAM800480B0-050TC

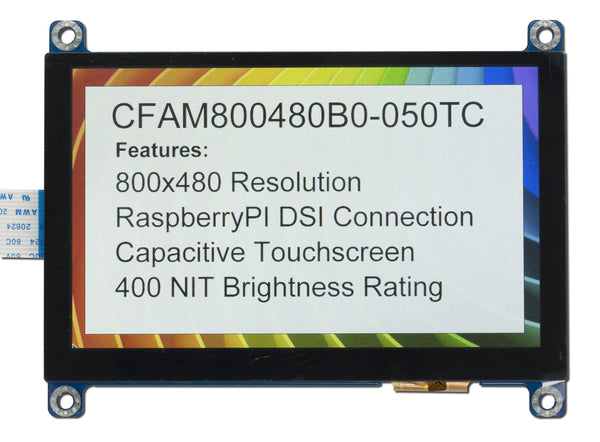

5" Raspberry Pi Compatible Touchscreen Display - CFAM800480B0-050TC
5" Raspberry Pi Compatible Touchscreen Display. Model: CFAM800480B0-050TC.Specifications Column Dots 800 px Row Dots 480 px Color Depth 64k bits Overall Width 120.70 mm / 4.752 in Overall Height 93.05 mm / 3.663 in Overall Depth 12.52 mm / 0.493 in Diagonal Dimension 5.01 in Weight 128 g Shape Rectangle Active Area Width 108.00 mm / 4.252 in Active Area Height 64.80 mm / 2.551 in Viewing Width 109.00 mm / 4.291 in Viewing Height 65.80 mm / 2.591 in Dot Pitch Width 0.14 mm / 0.005 in Dot Pitch Height 0.14 mm / 0.005 in Dot Size Width 0.14 mm / 0.005 in Dot Size Height 0.14 mm / 0.005 in Module Connector Type ZIF Pin Count 15 Display Technology TFT Glass Type TFT Polarizer Transmissive View Angle 80° Foreground Color RGB Background Color Dark Backlight Type LED Backlight Color White Supply Voltage for Logic Min: -0.5; Typ: 3.3; Max: 3.96 V Supply Current Min: 90; Typ: 110; Max: 130 mA Standard Interface(s) MIPI DSI Touch Screen Capacitive Operating Temperature -20°C / 70°C / -4°F / 158°F Storage Temperature -30°C / 80°C / -22°F / 176°F Special Characteristics rPi Display DatasheetsProduct datasheet
In stock
1+ pcs$1,111.00 / pc
Volume pricing available on request.
- Shipping calculated at checkout
- No MOQ on standard modules
| Diagonal size | Not specified |
|---|---|
| Resolution | Not specified |
| Interface | Not specified |
| Panel type | Not specified |
| Touch | Not specified |
| Brightness | Not specified |
| Operating temp | Not specified |
| Driver IC | Not specified |
5" Raspberry Pi Compatible Touchscreen Display. Model: CFAM800480B0-050TC.Specifications Column Dots 800 px Row Dots 480 px Color Depth 64k bits Overall Width 120.70 mm / 4.752 in Overall Height 93.05 mm / 3.663 in Overall Depth 12.52 mm / 0.493 in Diagonal Dimension 5.01 in Weight 128 g Shape Rectangle Active Area Width 108.00 mm / 4.252 in Active Area Height 64.80 mm / 2.551 in Viewing Width 109.00 mm / 4.291 in Viewing Height 65.80 mm / 2.591 in Dot Pitch Width 0.14 mm / 0.005 in Dot Pitch Height 0.14 mm / 0.005 in Dot Size Width 0.14 mm / 0.005 in Dot Size Height 0.14 mm / 0.005 in Module Connector Type ZIF Pin Count 15 Display Technology TFT Glass Type TFT Polarizer Transmissive View Angle 80° Foreground Color RGB Background Color Dark Backlight Type LED Backlight Color White Supply Voltage for Logic Min: -0.5; Typ: 3.3; Max: 3.96 V Supply Current Min: 90; Typ: 110; Max: 130 mA Standard Interface(s) MIPI DSI Touch Screen Capacitive Operating Temperature -20°C / 70°C / -4°F / 158°F Storage Temperature -30°C / 80°C / -22°F / 176°F Special Characteristics rPi Display DatasheetsProduct datasheet
5" Raspberry Pi Compatible Touchscreen Display. Model: CFAM800480B0-050TC.
Specifications
| Column Dots | 800 px |
|---|---|
| Row Dots | 480 px |
| Color Depth | 64k bits |
| Overall Width | 120.70 mm / 4.752 in |
| Overall Height | 93.05 mm / 3.663 in |
| Overall Depth | 12.52 mm / 0.493 in |
| Diagonal Dimension | 5.01 in |
| Weight | 128 g |
| Shape | Rectangle |
| Active Area Width | 108.00 mm / 4.252 in |
| Active Area Height | 64.80 mm / 2.551 in |
| Viewing Width | 109.00 mm / 4.291 in |
| Viewing Height | 65.80 mm / 2.591 in |
| Dot Pitch Width | 0.14 mm / 0.005 in |
| Dot Pitch Height | 0.14 mm / 0.005 in |
| Dot Size Width | 0.14 mm / 0.005 in |
| Dot Size Height | 0.14 mm / 0.005 in |
| Module Connector Type | ZIF |
| Pin Count | 15 |
| Display Technology | TFT |
| Glass Type | TFT |
| Polarizer | Transmissive |
| View Angle | 80° |
| Foreground Color | RGB |
| Background Color | Dark |
| Backlight Type | LED |
| Backlight Color | White |
| Supply Voltage for Logic | Min: -0.5; Typ: 3.3; Max: 3.96 V |
| Supply Current | Min: 90; Typ: 110; Max: 130 mA |
| Standard Interface(s) | MIPI DSI |
| Touch Screen | Capacitive |
| Operating Temperature | -20°C / 70°C / -4°F / 158°F |
| Storage Temperature | -30°C / 80°C / -22°F / 176°F |
| Special Characteristics | rPi Display |
